This blog post was authored by Hossein Jazi and Jérôme Segura
On June 10, we found a malicious Word document disguised as a resume that uses template injection to drop a .Net Loader. This is the first part of a multi-stage attack that we believe is associated to an APT attack. In the last stage, the threat actors used Cobalt Strike's Malleable C2 feature to download the final payload and perform C2 communications.
Lure with delayed code execution
The lure document was probably distributed through spear phishing emails as a resume from a person allegedly named "Anadia Waleed." At first, we believed it was targeting India but it is possible that the intended victims could be more widespread.

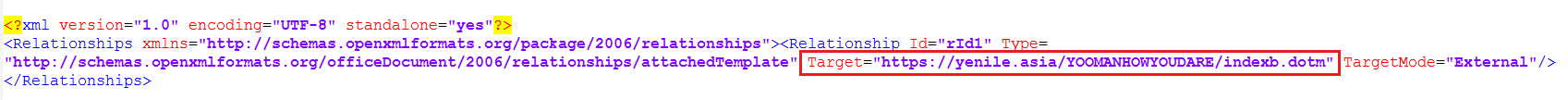

The malicious document uses template injection to download a remote template from the following url:
The domain used to host the remote template was registered on February 29, 2020 by someone from Hong Kong. Creation time for the document is 15 days after this domain registration.
The downloaded template, "indexa.dotm", has an embedded macro with five functions:

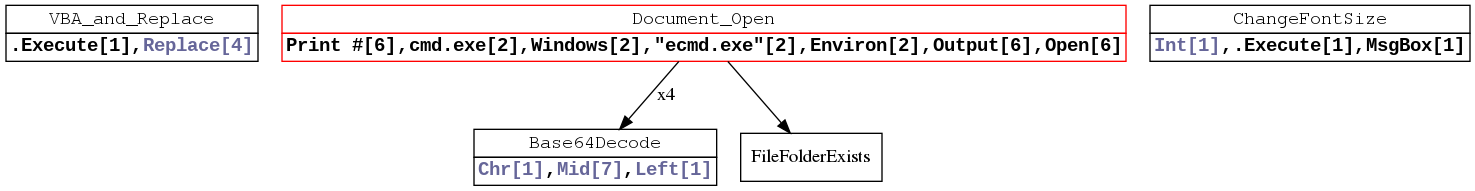

The following shows the function graph of the embedded macro.

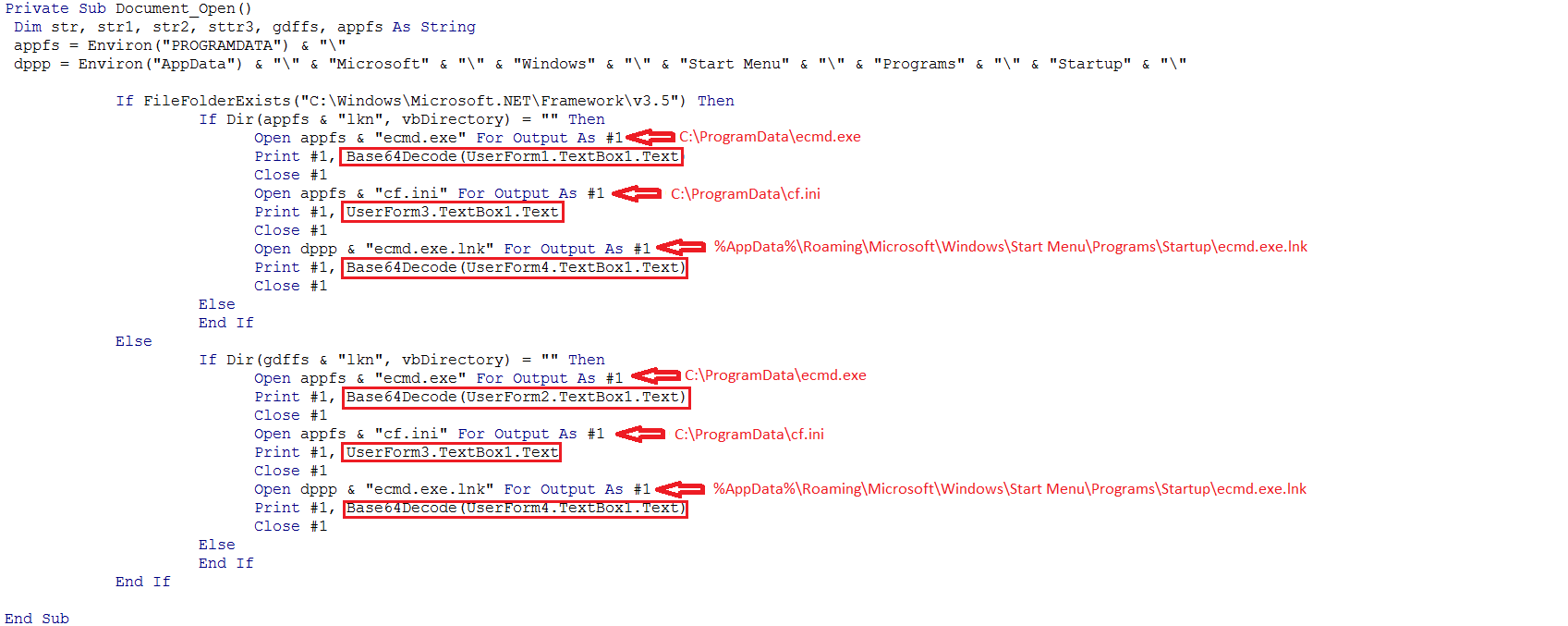

The main function is Document_open which is executed upon opening the file. This function drops three files into the victim's machine:
- Ecmd.exe: UserForm1 and UserForm2 contain two Base64 encoded payloads. Depending on the version of .Net framework installed on the victim's machine, the content of UserForm1 (in case of .Net v3.5) or UserForm2 (other versions) is decoded and stored in "C:\ProgramData".
- cf.ini: The content of the "cf.ini" file is extracted from UserForm3 and is AES encrypted, which later on is decrypted by ecmd.exe.
- ecmd.exe.lnk: This is a shortcut file for "ecmd.exe" and is created after Base64 decoding the content of UserForm4. This file is dropped in the Startup directory as a trigger and persistence mechanism.
Ecmd.exe is not executed until after the machine reboots.
Ecmd.exe is a .Net executable that pretends to be an ESET command line utility. The following images show the binary certificates, debugger and version information.
The executable has been signed with an invalid certificate to mimic ESET, and its version information shows that this is an "ESET command line interface" tool (Figure 6-8).

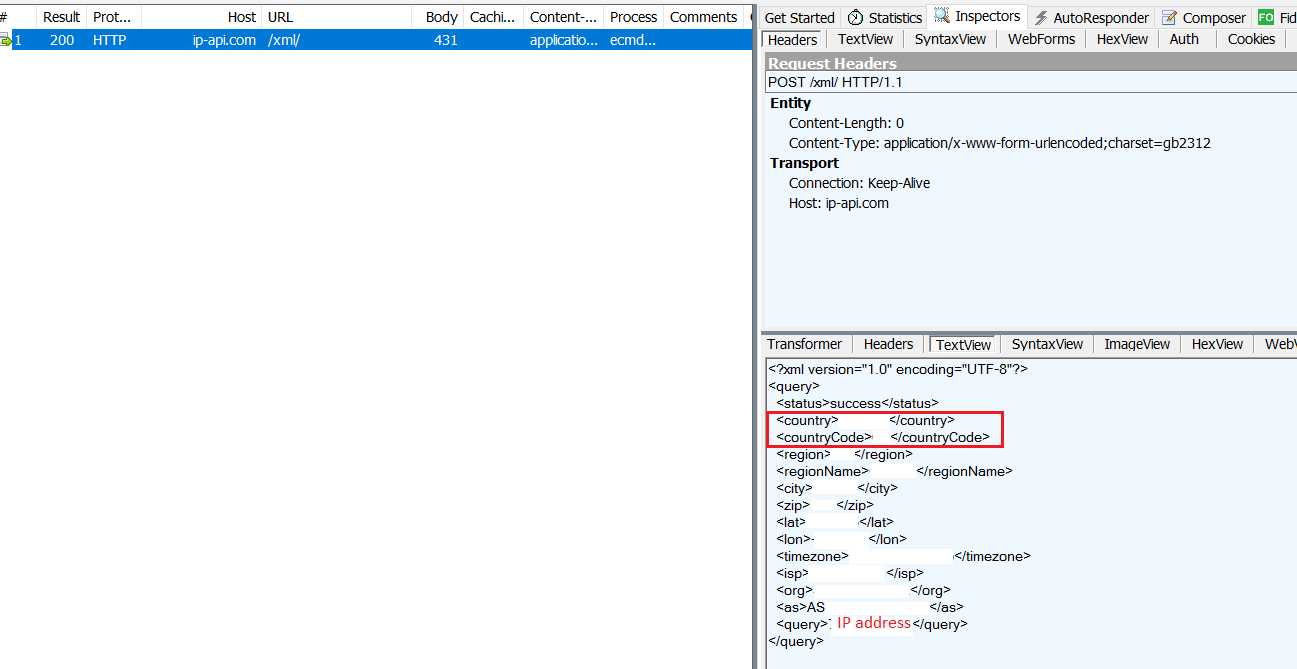

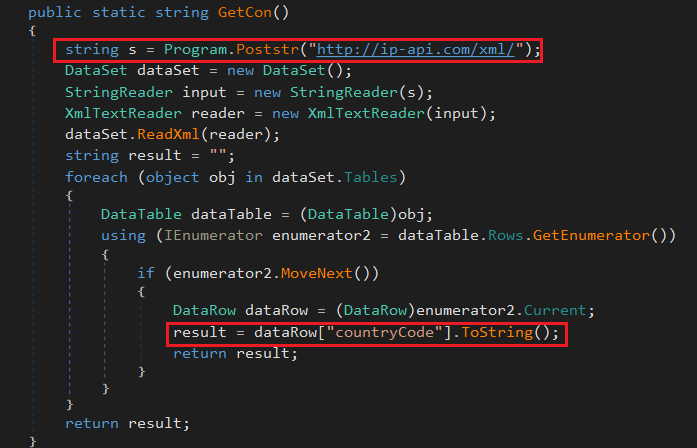

ecmd.exe is a small loader that decrypts and executes the AES encrypted cf.ini file mentioned earlier. It checks the country of the victim's machine by making a HTTP post request to "http://ip-api.com/xml". It then parses the XML response and extracts the country code.
If the country code is "RU" or "US" it exits; otherwise it starts decrypting the content of "cf.ini" using a hard-coded key and IV pair.

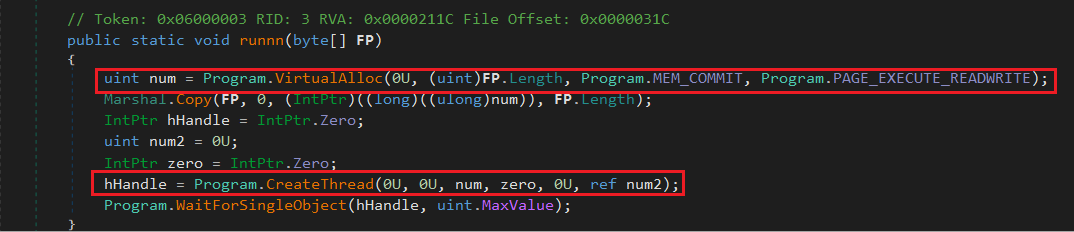

The decrypted content is copied to an allocated memory region and executed as a new thread using VirtualAlloc and CreateThread APIs.
A Malleable C2 is a way for an attacker to blend in command and control traffic (beacons between victim and server) with the goal of avoiding detection. A custom profile can be created for each target.
The shell code uses the Cobalt Strike Malleable C2 feature with a jquery Malleable C2 profile to download the second payload from “time.updateeset[.]com”.
The shellcode first finds the address of ntdll.exe using PEB and then calls LoadLibrayExA to load Winint.dll. It then uses InternetOpenA, InternetConnectA, HttpOpenRequestA, InternetSetOptionA and HttpSendRequestA APIs to download the second payload.
The API calls are resolved within two loops and then executed using a jump to the address of the resolved API call.

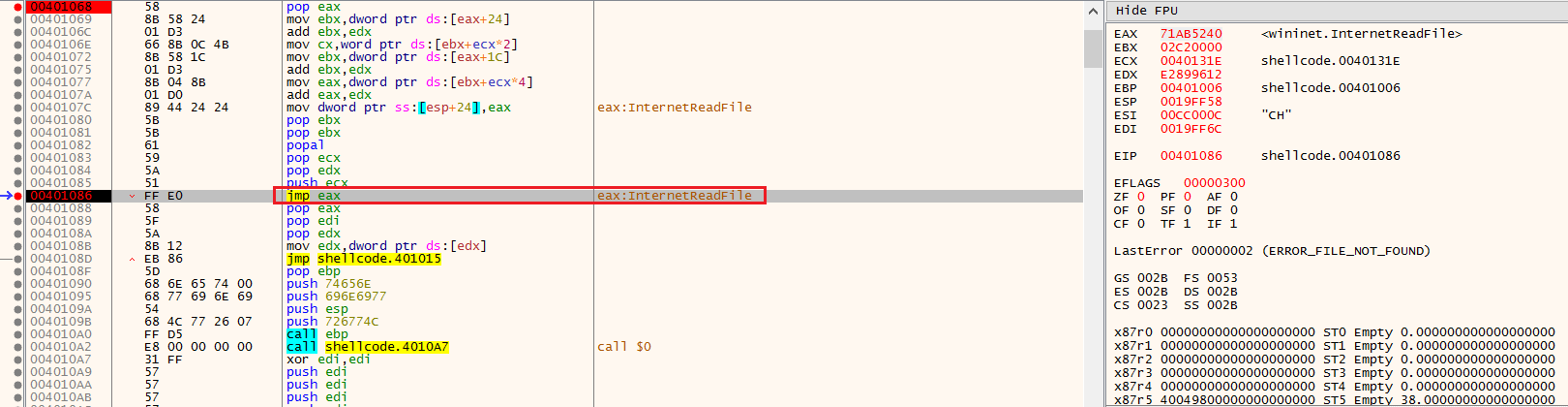

The malicious payload is downloaded by InternetReadFile and is copied to an allocated memory region.

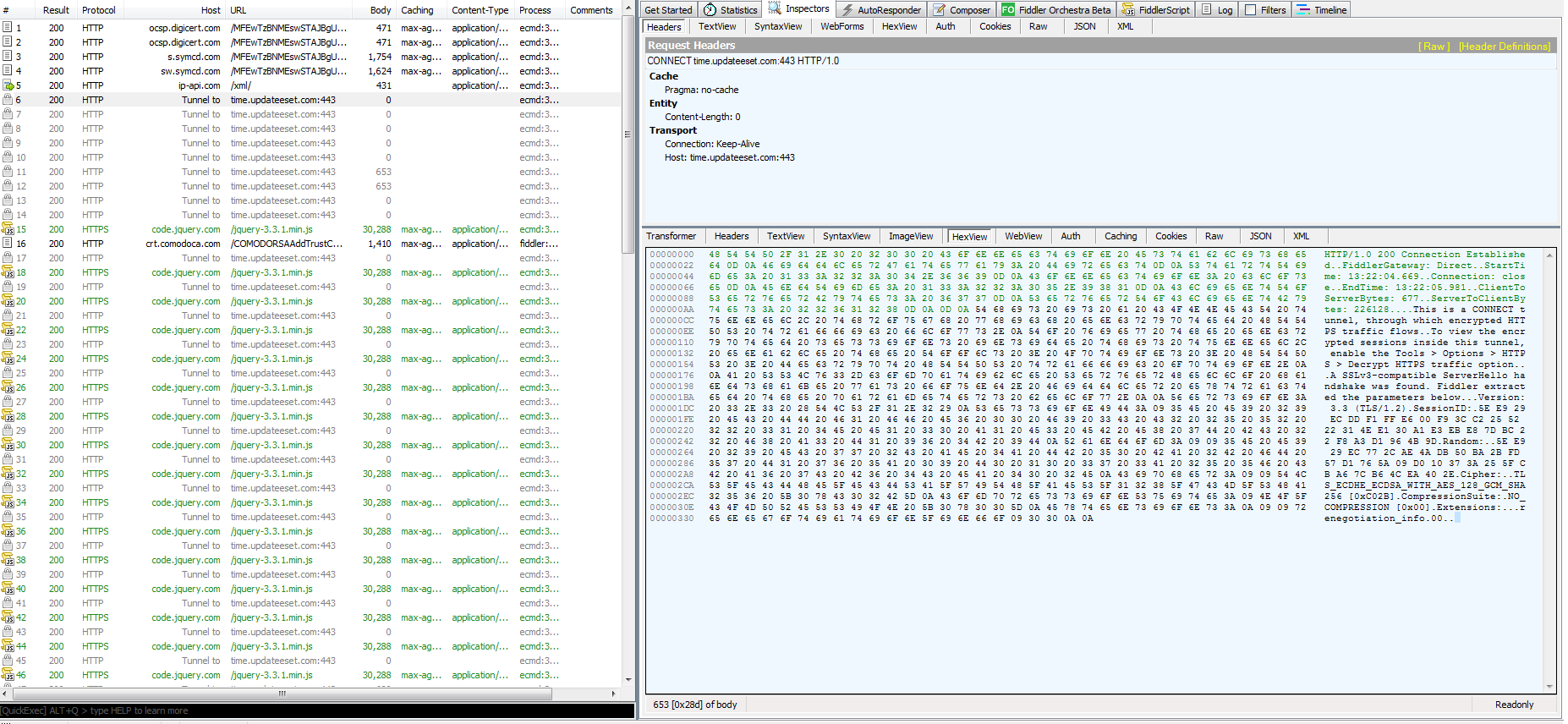

Considering that communication is over HTTPS, Wireshark is not helpful to spot the malicious payload. Fiddler was not able to give us the payload either:

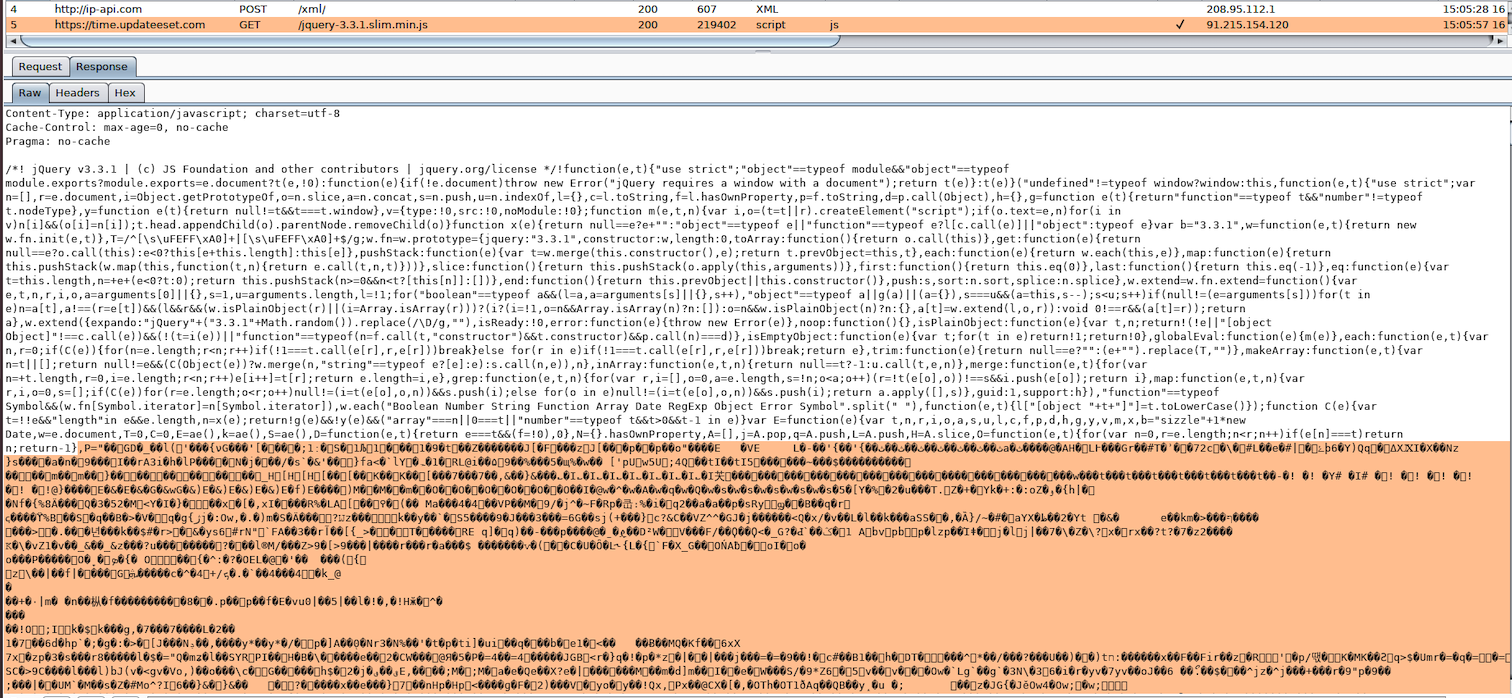

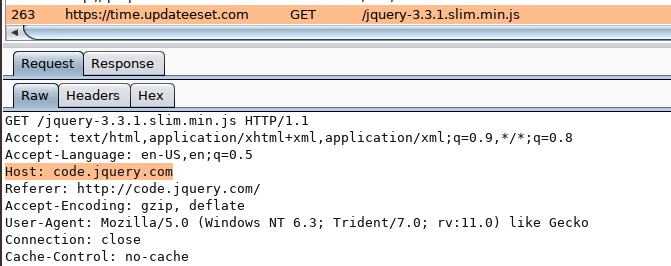

Using Burp Suite proxy we were able to successfully verify and capture the correct payload downloaded from time.updateeset[.]com/jquery-3.3.1.slim.min.js. As can be seen in Figure 16, the payload is included in the jQuery script returned in the HTTP response:

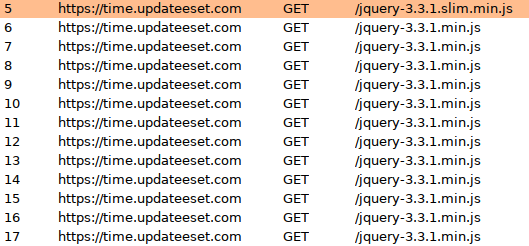

After copying the payload into a buffer in memory, the shellcode jumps to the start of the buffer and continues execution. This includes sending continuous beaconing requests to "time.updateeset[.]com/jquery-3.3.1.min.js" and waiting for the potential commands from the C2.
Using Hollow Hunter we were able to extract the final payload which is Cobalt Strike from ecmd's memory space.
A precise attribution of this attack is a work in progress but here we provide some insights into who might be behind this attack. Our analysis showed that the attackers excluded Russia and the US. The former could be a false flag, while the latter may be an effort to avoid the attention of US malware analysts.

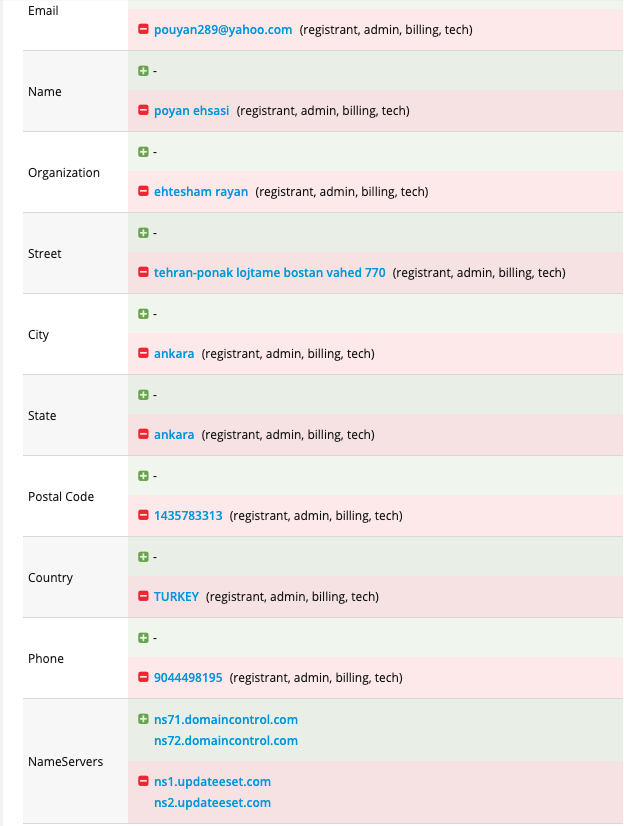

As mentioned before, the domain hosting the remote template is registered in Hong Kong while the C2 domain "time.updateeset[.]com" was registered under the name of an Iranian company called Ehtesham Rayan on Feb 29, 2020. The company used to provide AV software and is seemingly closed now. However, these are not strong or reliable indicators for attribution.
In terms of TTPs used, Chinese APT groups such as Mustang Panda and APT41 are known to use jQuery and the Malleable C2 feature of Cobalt Strike. Specifically, the latest campaign of Mustang Panda has used the same Cobalt Strike feature with the same jQuery profile to download the final payload which is also Cobalt Strike. This is very similar to what we saw in this campaign, however the initial infection vector and first payload are different in our case.
Anadia Waleed resume.doc
Remote Template: indexa.dotm
Remote Template Url:
Cf.ini shell-code after decryption:
Cobalt Strike downloaded shellcode:
Cobalt Strike payload
